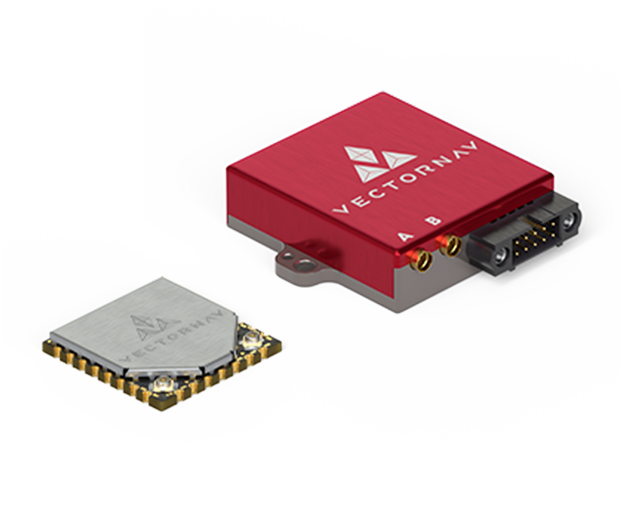

VectorNav VN-300 Dual Antenna GPS/INS
MFR VectorNav TechnologiesMODEL VN-300
High-performance GPS-aided INS with dual GNSS antennas. Features advanced sensor fusion, MEMS IMU, and precise heading determination for demanding robotic navigation applications.
Specifications
Specifications· 10 fields
- Imu Type
- MEMS
- Gnss Receivers
- Dual
- Position Accuracy
- 2.5m CEP
- Heading Accuracy
- 0.3° RMS
- Output Rate
- 800 Hz
- Gyro Range
- ±2000 deg/s
- Accel Range
- ±16g
- Interface
- UART, SPI, USB
- Dimensions
- 58 x 58 x 14 mm
- Weight
- 65g
