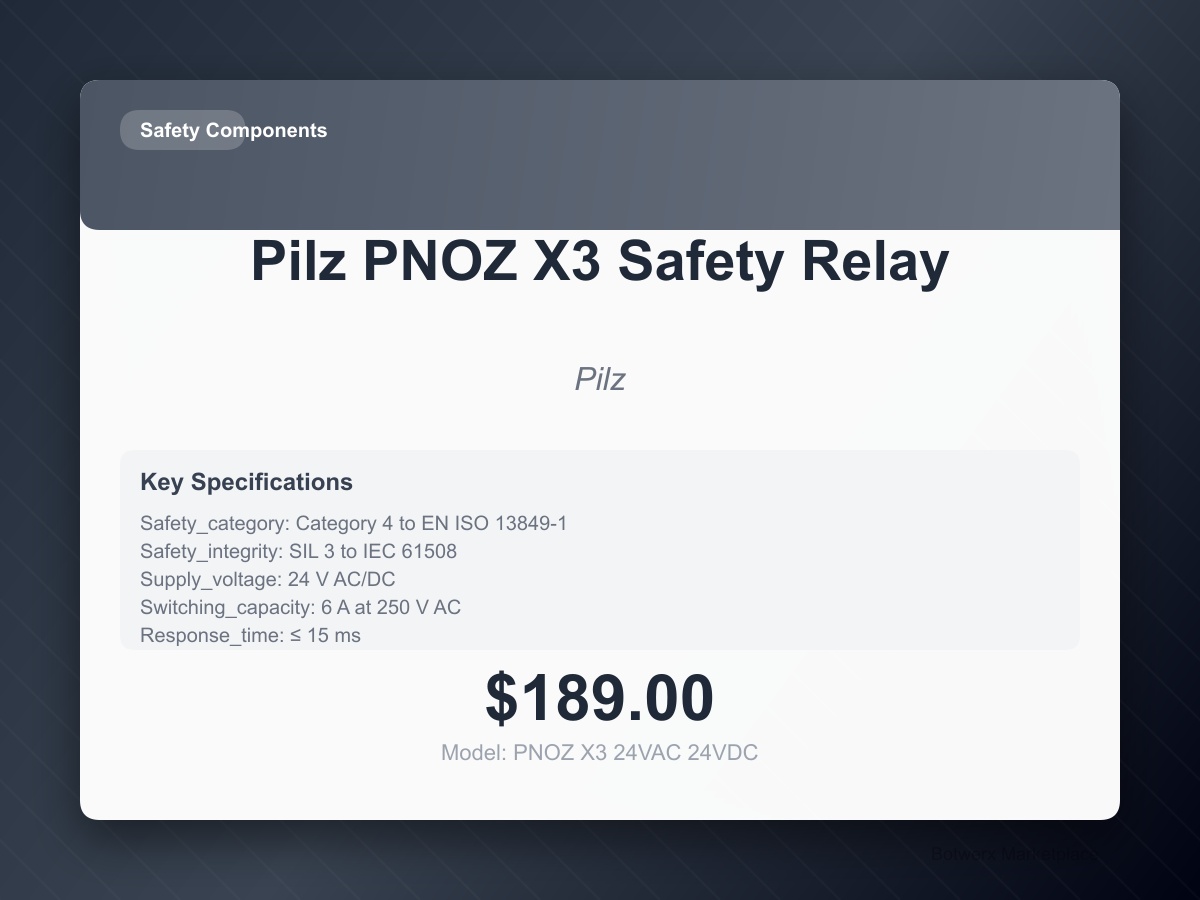

Pilz PNOZ X3 Safety Relay
MFR PilzMODEL PNOZ X3 24VAC 24VDC
Safety relay for monitoring emergency stop circuits, safety gates, light barriers and pressure-sensitive mats. Meets highest safety standards for industrial automation.
Specifications
Specifications· 12 fields
- Safety category
- Category 4 to EN ISO 13849-1
- Safety integrity
- SIL 3 to IEC 61508
- Supply voltage
- 24 V AC/DC
- Switching capacity
- 6 A at 250 V AC
- Response time
- ≤ 15 ms
- Reset
- Manual/automatic selectable
- Connections
- Screw terminals
- Operating temperature
- -25°C to +60°C
- Dimensions
- 22.5 x 99 x 114.5 mm
- Weight
- 130 g
- Protection
- IP40
- Certifications
- TÜV, BG, UL, CSA
