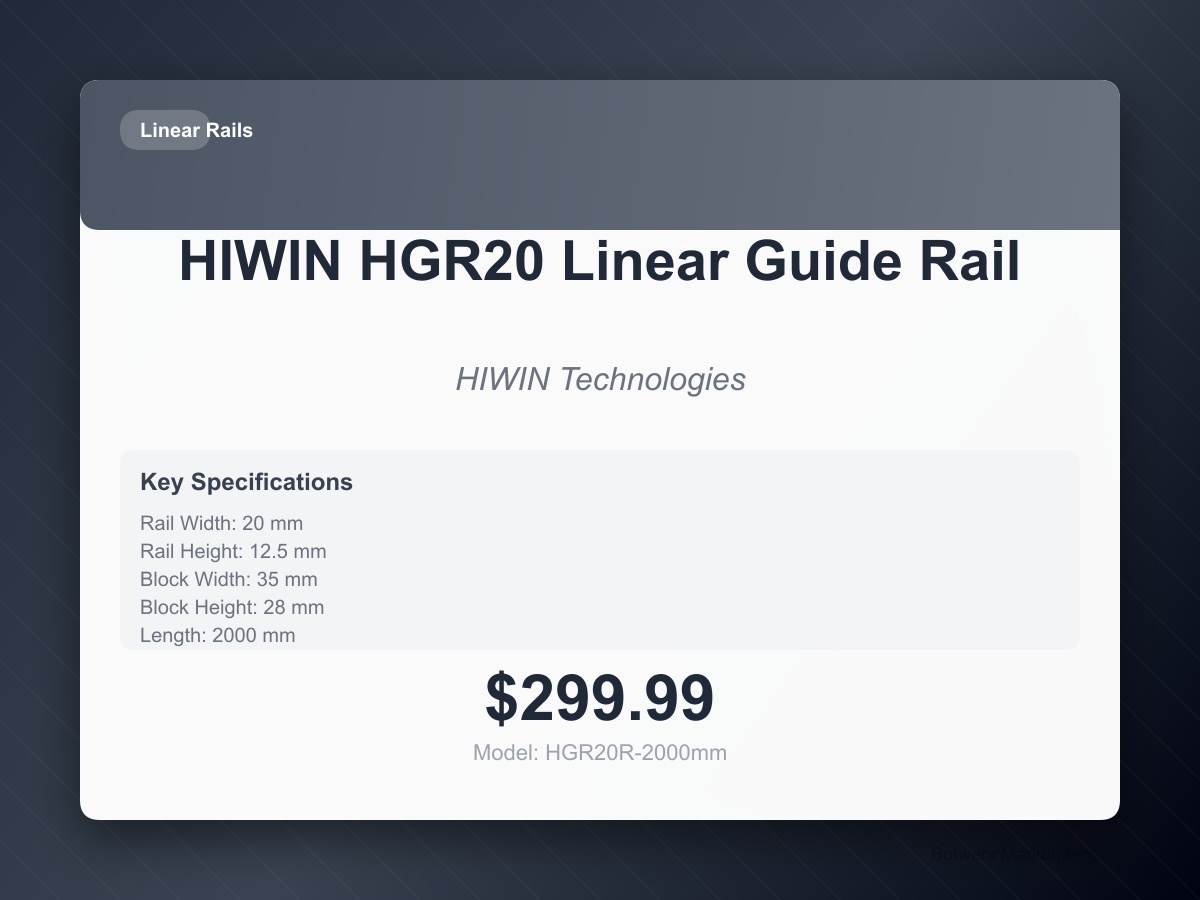

HIWIN HGR20 Linear Guide Rail
MFR HIWIN TechnologiesMODEL HGR20R-2000mm
Precision linear guide rail system for high-accuracy robotic positioning. Features four-way equal load design and excellent rigidity for industrial automation.
Specifications
Specifications· 13 fields
- Rail Width
- 20 mm
- Rail Height
- 12.5 mm
- Block Width
- 35 mm
- Block Height
- 28 mm
- Length
- 2000 mm
- Accuracy
- ±0.02 mm
- Load Rating
- 14.7 kN dynamic
- Moment Rating
- 266 N⋅m
- Max Speed
- 5 m/s
- Lubrication
- Grease sealed
- Material
- Carbon steel, induction hardened
- Hardness
- 58-62 HRC
- Temperature
- -10°C to +80°C
