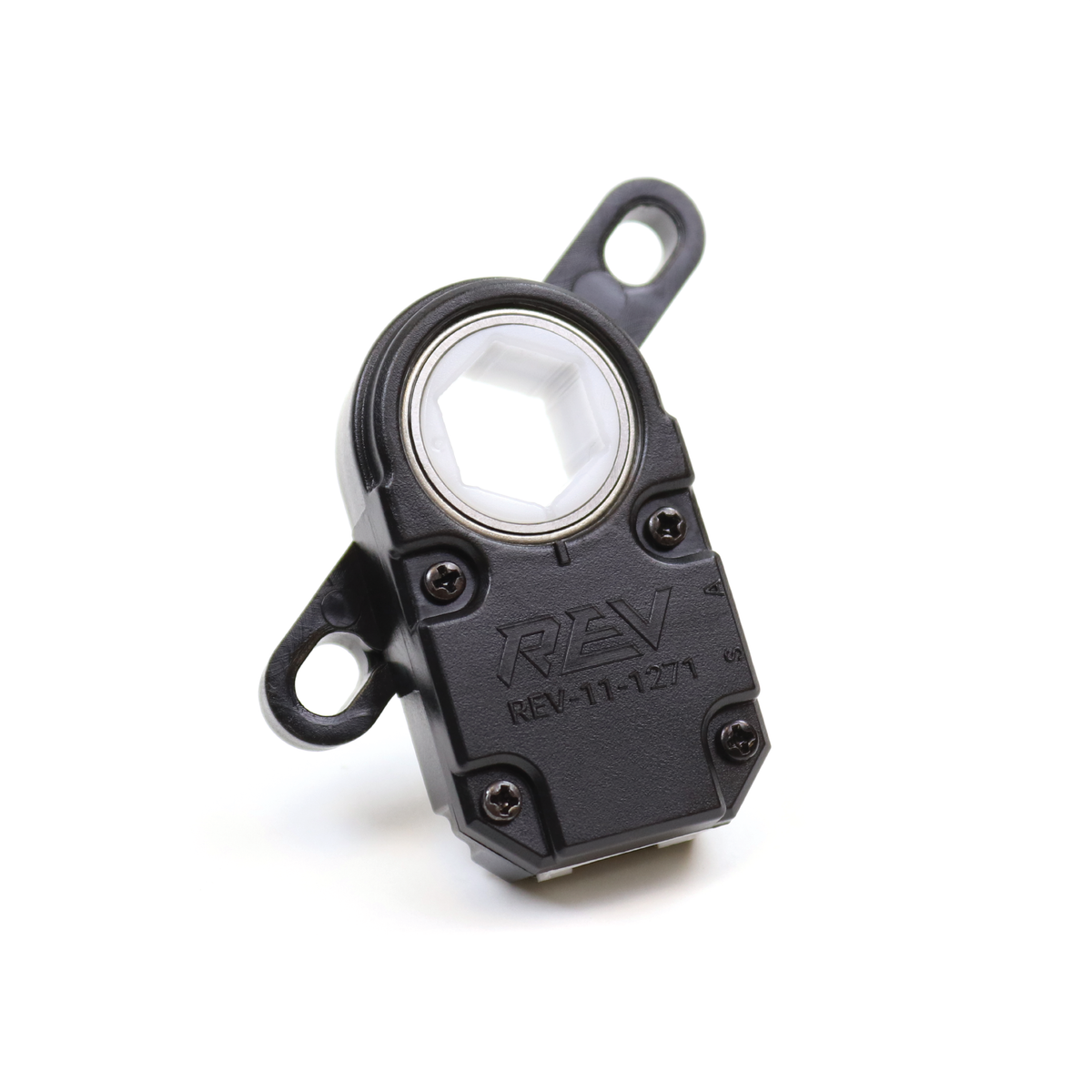

Through Bore Encoder V1
MODEL REV-11-1271
Through Bore Encoder V1 — sensors.
Vendor-supplied listing. This listing comes from REV Robotics. The manufacturer is not recorded. Full specifications and current availability are held by the manufacturer; this listing carries the part, its price and its category.
No second supplier matched for this listing — REV Robotics is the only route we can offer today. Our cross-store matching covers only part of the catalogue.
Specifications· 2 fields
- Connector
- JST-PH 6-pin
- Input voltage
- 3.3V - 5.0V
Documents & CAD· 6 files · hosted by the supplier
- CAD modelSTEPSTEP file, for dropping the part into an assembly“Through Bore Encoder V1 (REV-11-1271) STEP File”
- CAD modelSTEPSTEP file, for dropping the part into an assembly“3/8in Hex to 1/2in Hex Insert (REV-21-1843) STEP File”
- CAD modelSTEPSTEP file, for dropping the part into an assembly“5mm Hex to 1/2in Hex Insert (REV-21-1844) STEP File”
- CAD modelSTEPSTEP file, for dropping the part into an assembly“1/4in Round to 1/2in Hex Insert (REV-21-1845) STEP File”
- Spec sheetPDFdimensioned drawing of this part“Through Bore Encoder V1 (REV-11-1271) Drawing”
- ManualPDF“Round Insert Installation Guide”
